Pre-paid chargers for electric vehicles suitable for private houses, residential or business condominiums.
Pre-paid or post-paid solution suitable for all types of consumption.
Access via RFID or Touch Screen PIN.
Pre-paid or post-paid solution suitable for all types of consumption.
Access via RFID or Touch Screen PIN.
 |
 |
 |
 |
|
|---|---|---|---|---|

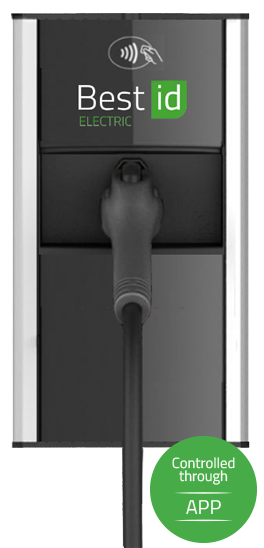

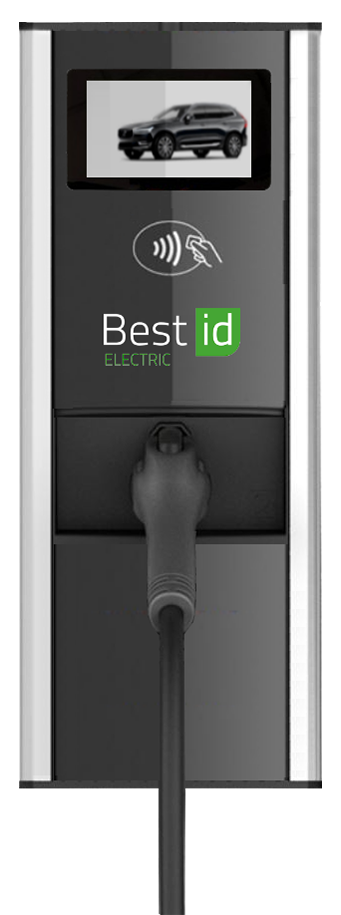

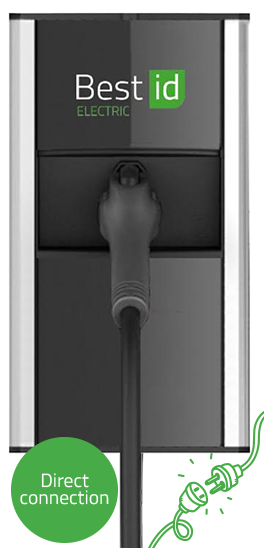

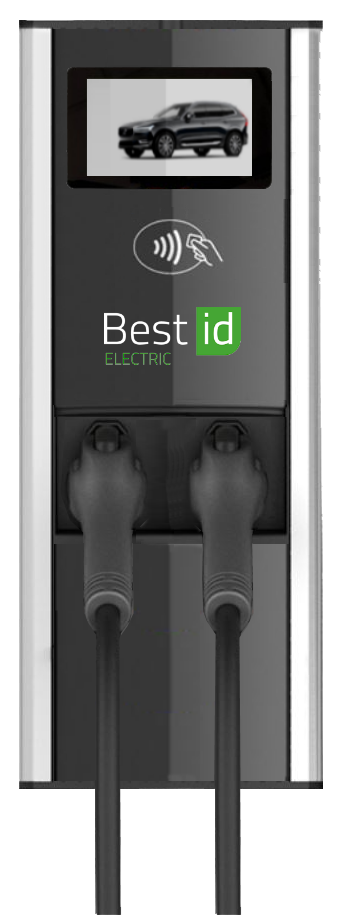

| Basic | Mini | Single | Dual | |
| Electrical Input | ||||
| Power Select 16A | Input Current: 16A Input Power Connection: One 20A branch circuit Required Service Panel Breaker: 20A dual pole (non-GFCI type) |
Input Current: 16A Input Power Connection: One 20A branch circuit Required Service Panel Breaker: 20A dual pole (non-GFCI type) |
Input Current: 16A Input Power Connection: One 20A branch circuit Required Service Panel Breaker: 20A dual pole (non-GFCI type) |
Input Current: 16A x 2 Input Power Connection: Two independent 20A branch circuits Required Service Panel Breaker: 20A dual pole (non-GFCI type) x 2 |
| Power Select 32A | - | Input Current: 32A Input Power Connection: One 40A branch circuit Required Service Panel Breaker: 40A dual pole (non-GFCI type) |
Input Current: 32A Input Power Connection: One 40A branch circuit Required Service Panel Breaker: 40A dual pole (non-GFCI type) |
Input Current: 32A x 2 Input Power Connection: Two independent 40A branch circuits Required Service Panel Breaker: 40A dual pole (non-GFCI type) x 2 |
| Wiring - Standard | 3-wire (L1, L2, Earth) | 3-wire (L1, L2, Earth) | 3-wire (L1, L2, Earth) | 5-wire (L1, L1, L2, L2, Earth) |
| Wiring - Power Share | n/a | n/a | n/a | 3-wire (L1, L2, Earth) |
| Station Power | 4W typical (standby), 10W maximum (operation) | 4W typical (standby), 10W maximum (operation) | 8W typical (standby), 15W maximum (operation) | 8W typical (standby), 15W maximum (operation) |
| Electrical Output | ||||
| Power 16A | 3.6kW (220V AC@16A) | 3.6kW (220V AC@16A) | 3.6kW (220V AC@16A) | 3.6kW (220V AC@16A) x 2 |
| Power 32A | - | 7.2kW (220V AC@32A) | 7.2kW (220V AC@32A) | 7.2kW (220V AC@32A) x 2 |
| Functional Interfaces | ||||
| Connector(s) Type | SAE J177 / IEC 62196 | SAE J177 / IEC 62196 | SAE J1772 / IEC 62196 | SAE J1772 x 2 / IEC 62196 x 2 / SAE J1772 + IEC 62196 |
| Cable Length | 5.0 m TUV | 5.0 m TUV | 5.0 m TUV | 5.0 m TUV x 2 |
| LCD Display | n/a | n/a | 7" Touchscreen, 800x480 | 7" Touchscreen, 800x480 |
| Reader | - | EM 4100 RFID | RFID / Fingerprint / Barcode / PINPAD | RFID / Fingerprint / Barcode / PINPAD |
| Plug Holder | Yes | Yes | Yes | Yes x 2 |
| Connectivity Features | ||||
| Wireless LAN | - | 802.11n | 802.11n | 802.11n |
| Ethernet port | - | 100Mb | 100Mb | 100Mb |
| Bluetooth | - | Bluetooth 4.1 | Bluetooth 4.1 | Bluetooth 4.1 |
| Price - version 16A | 499€ | 599€ | 899€ | 1300€ |
| Price - version 32A | 699€ | 799€ | 1099€ | 1700€ |
Note: The values do not include VAT rate
